LED Display 960 4mm Indoor LED Panel (Type-A)

Description

The LED Display 960 series offers a more affordable indoor LED display solution engineered for fixed installations, corporate environments, and architectural video walls. Its sleek, slim‑profile cabinet and versatile mounting options deliver rock‑solid mechanical precision and long‑term reliability.

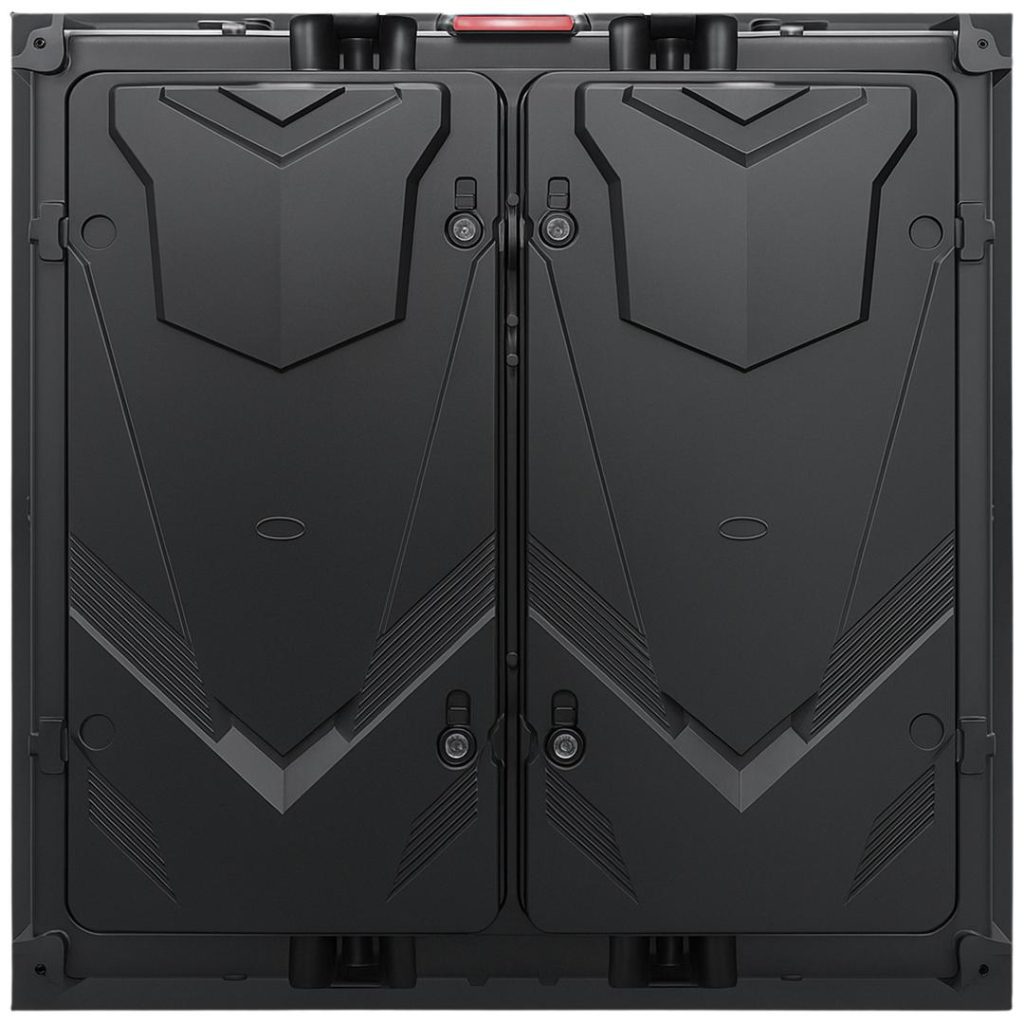

Each cabinet features a full die‑cast aluminum front and iron back, optimized thermal balance, and seamless cabinet‑to‑cabinet alignment. Inside, a 3 x 6 array of 320mm x 160mm modules links via soft‑cable connections for straightforward servicing and good signal flexibility.

Running at a 3,840 Hz refresh rate with 13‑bit gray‑scale depth, the panel delivers fluid motion and rich color fidelity. Each cabinet is driven by a Nova A5s Plus receiving card paired with high‑efficiency Nandian NB200P55 power supplies.

With 600 nits of peak brightness, a contrast ratio of ≥ 5000 : 1, and a 160° × 160° viewing angle (W/H), these panels deliver crisp, daylight‑balanced imagery at a calibrated 12,000 K color temperature. The panel’s IP30 rating ensures dependable operation in any standard indoor setting.

Serviceability is effortless thanks to full‑front access via magnetic modules, while a ± 0.3 % dimensional tolerance guarantees great aligned, large‑format installations. Power and data connections utilize rugged Direct Power and Ethernet interfaces for professional‑grade reliability.

Ideal for corporate lobbies, churches, control rooms, and architectural video walls, the LED Display 960 series combines affordability, sleek aesthetics, robust construction, and effortless maintenance to meet the demands of today’s fixed‑installation environments.

The 960×960×55 mm cabinet houses a 240×240 pixel array built with SMD 2020 LEDs on a 2‑layer, 1.6 mm PCB. ICN1065L drivers operate at a 1/16 scan rate to deliver a 3,840 Hz refresh frequency and 13‑bit gray‑scale depth, ensuring crisp video and text. Control is managed by the Nova A5s Plus receiving card, while dual Nandian NB200P55 power supplies support up to 360 W peak consumption through a direct‑power interface. Optically, it reaches 600 nits of brightness with a contrast ratio ≥ 5000 : 1 and a calibrated 12,000 K white point across a 160°×160° viewing angle. Structural rigidity and heat dissipation come from its full die‑cast aluminum front and iron back chassis—machined to ± 0.3 % tolerance for seamless tile alignment. Weighing 28 kg (62 lbs), front‑access magnetic modules allow rapid servicing while supporting fixed wall‑mount installations. An IP30 rating makes it ideal for permanent indoor applications.
