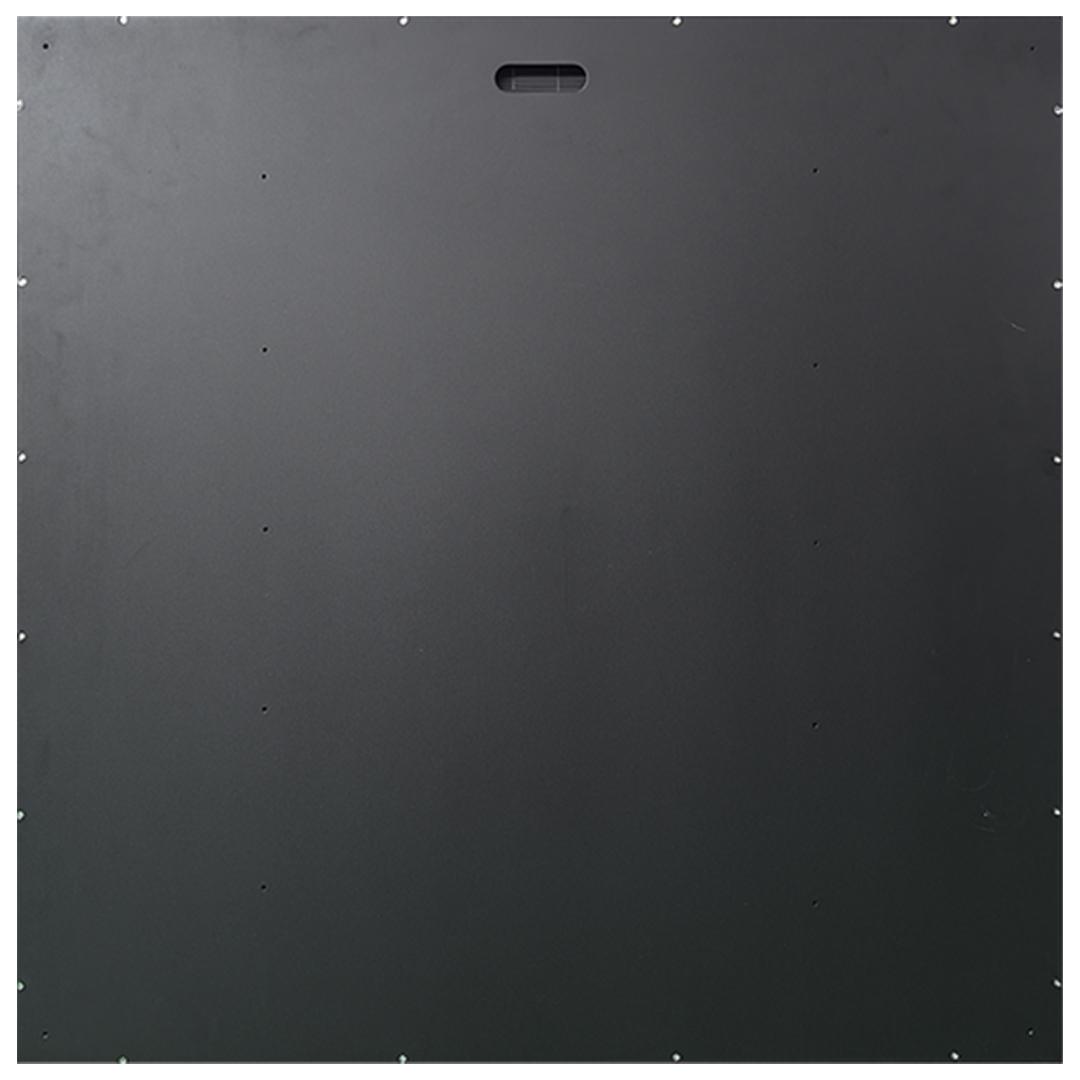

LED Display 960 2.5mm Indoor LED Panel (Type-A)

Description

The LED Display 960 series offers a more affordable indoor LED display solution engineered for fixed installations, corporate environments, and architectural video walls. Its sleek, slim‑profile cabinet and versatile mounting options deliver rock‑solid mechanical precision and long‑term reliability.

Each cabinet features a full die‑cast aluminum front and iron back, optimized thermal balance, and seamless cabinet‑to‑cabinet alignment. Inside, a 3 x 6 array of 320mm x 160mm modules links via soft‑cable connections for straightforward servicing and good signal flexibility.

Running at a 3,840 Hz refresh rate with 13‑bit gray‑scale depth, the panel delivers fluid motion and rich color fidelity. Each cabinet is driven by a Nova A5s Plus receiving card paired with high‑efficiency Nandian NB200P55 power supplies.

With 600 nits of peak brightness, a contrast ratio of ≥ 5000 : 1, and a 160° × 160° viewing angle (W/H), these panels deliver crisp, daylight‑balanced imagery at a calibrated 12,000 K color temperature. The panel’s IP30 rating ensures dependable operation in any standard indoor setting.

Serviceability is effortless thanks to full‑front access via magnetic modules, while a ± 0.3 % dimensional tolerance guarantees great aligned, large‑format installations. Power and data connections utilize rugged Direct Power and Ethernet interfaces for professional‑grade reliability.

Ideal for corporate lobbies, churches, control rooms, and architectural video walls, the LED Display 960 series combines affordability, sleek aesthetics, robust construction, and effortless maintenance to meet the demands of today’s fixed‑installation environments.

The 960×960×55 mm cabinet packs a 384×384 pixel matrix using high‑precision SMD 2020 LEDs on a 2‑layer, 1.6 mm PCB. ICN1065L driver ICs run at a 1/32 scan rate, delivering a 3,840 Hz refresh frequency with 13‑bit gray‑scale depth for artifact‑free motion and shading. A Nova A5s Plus receiving card handles data input via direct Ethernet, while dual Nandian NB200P55 power supplies provide up to 360 W peak consumption through a direct‑power interface. Optically tuned to 600 nits (cd/m²) and ≥ 5000 : 1 contrast, with a 12,000 K‑calibrated white point and a 160°×160° viewing angle, it produces vivid, uniform imagery. The full die‑cast aluminum front and iron back chassis—with ± 0.3 % dimensional tolerance ensuring seamless tile alignment. Weighing 25 kg (55 lbs), front‑access magnetic modules allow rapid servicing while supporting fixed wall‑mount installations. An IP30 rating makes it ideal for permanent indoor applications.
